One Facial Tissue Machine Product Line With Two Packing Style

Model: Complete Facial Tissue Production Line With Two Different Packing Styles, Integrated Tissue Making & Packaging Line

Full Automatic Facial Tissue Machine Facial Tissue Paper Folding Making Machine Facial Paper Produet Line With Two Packing Style
Facial Tissue Machine Features:
Box-drawing facial tissue machine use jumbo roll to process and fold into "V" type of paper. The machine adopts the vaccum adsorption principle and auxiliary manipulator folding.
Automatic counting points a whole row output;
Helical balde shear, vacuum adsorption folding;
Stepless speed regulation unwind, It can adjust to use for high or low tension paper material;
Adopt PLC computer programming control, pneumatic lifting for jumbo roll, easy for operation;
Frequency conversion contrtol, save energy;
The width of paper can be adjustable, to meet different market requirement;
Supporting paper rolling pattern device and edge rolling device, Pattern is obvious, flexible to meet market demand. (Pattern selected by customers)
It can make "V" type single layer towel and two layers glue lamination.(Optional)
PLC Servo Control Labor Saving OEM / ODM Fast Delivery
Factory Direct Global Shipping Lifetime Support

Detailed parameters for engineering evaluation and procurement reference.

Parameter Value
Production rate: 60~80 meters/minute per line
Product unfold size (mm): 180(length) x130-210 (adjustable width)
Product unfold size (mm): 190(length) x130-210 (adjustable width)
Product unfold size (mm): 200(length) x130-210 (adjustable width)
Folding proucts size (mm): 90(length) x130-210 (adjustable width)
Folding proucts size (mm): 95(length) x130-210 (adjustable width)
Folding proucts size (mm): 100(length) x130-210 (adjustable width)
Max. jumbo roll width: 2L/420mm, 3L/630mm, 4L/840mm, 5L/1050mm, 6L/1260mm
Max. jumbo roll width: 1100mm (other sizes can be specify)
Main motor power: 2L/3.0kw, 3L/3.0kw, 4L/4.0kw, 5L/5.5kw, 6L/5.5kw
Vacuum blower power: 2L/7.5kw, 3L/11kw, 4L/15kw, 5L/15kw, 6L/22kw

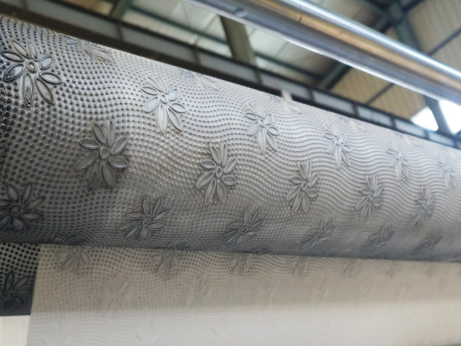

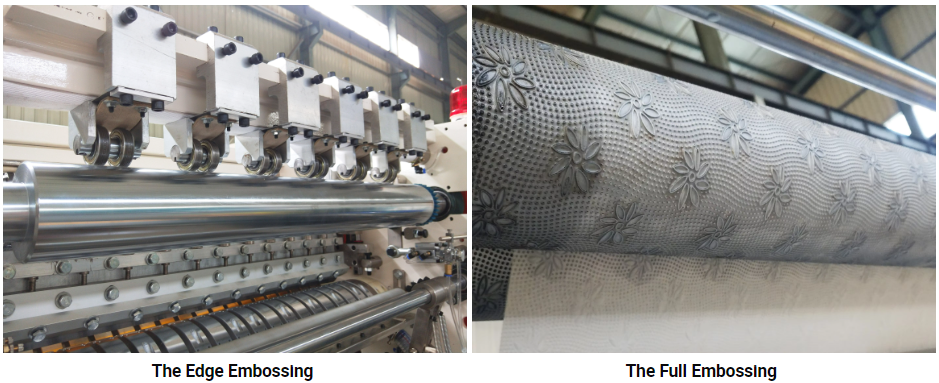

Embossing unit: Steel to rubber rollers, (steel yo steel embossing need customized)

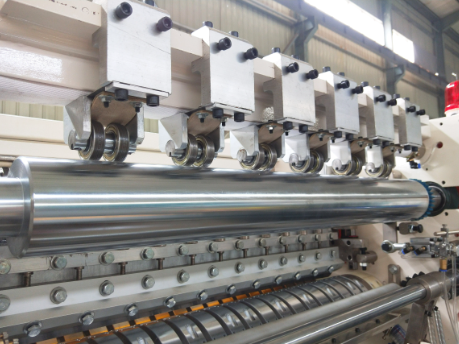

Edge embossing unit: Steel to steel rollers

* Specifications may vary based on customization requirements. Contact us for tailored solutions.

All‑in‑One Facial Tissue Machine Production Line, Supports 2 Packing Styles for Soft‑Pack & Boxed Facial Tissue

Factory Direct Facial Tissue Production Line, One Line Realizes Two Packing Modes for Tissue Manufacturing

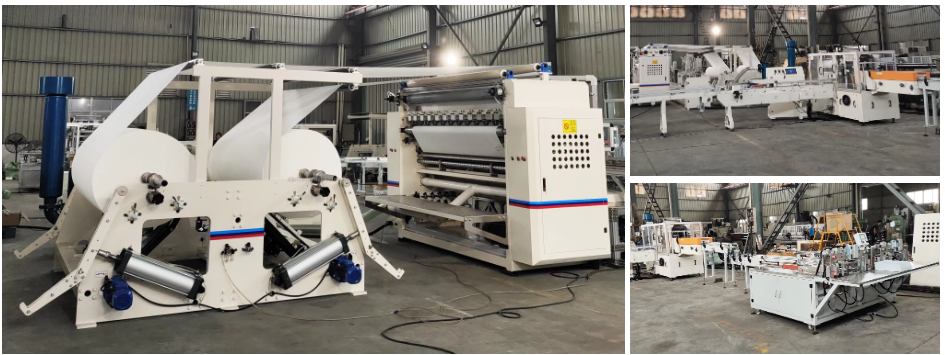

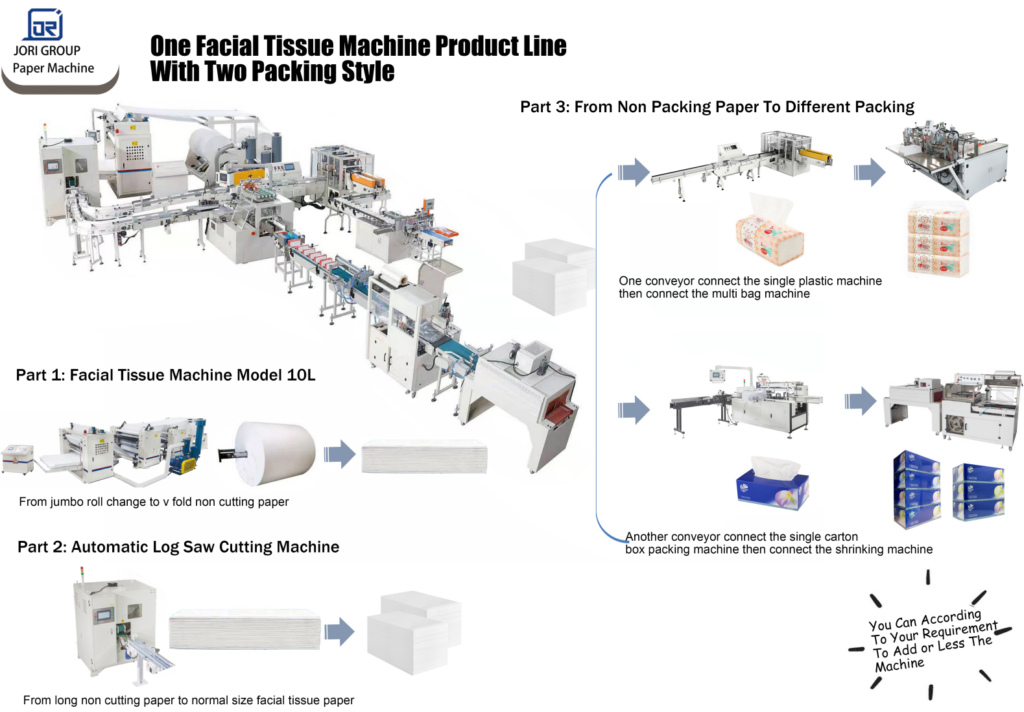

This complete facial tissue production line combines tissue folding equipment with two sets of packing solutions within one production layout. It can produce standard V‑fold facial tissues and finish both soft‑pack packaging and carton box packing on the same line. Manufacturers can switch between the two packing styles according to actual market orders. Instead of building two separate production lines, this integrated unit helps tissue factories make both boxed and soft‑pack facial tissues. It is a practical solution for plants that handle mixed orders from supermarkets, wholesalers and brand customers.

Facial Tissue Converting Line, One Production Line Equipped With Two Packing Options

  1. One line delivers two packing styles Supports soft‑pack and boxed facial tissue packing. You can shift between two packaging formats to fulfill different customer orders, expand your product portfolio without extra large‑scale investment.
  2. Save investment and workshop space No need to purchase two independent complete lines. Shared upstream folding machine reduces equipment cost and occupies less factory floor space. Great for medium‑size tissue factories.
  3. Flexible order switching Adjust parameters on the control system when changing packing styles. Reasonable workflow layout cuts down transition downtime between soft‑pack and boxed tissue production. Ordinary operators can get familiar with the process quickly.
  4. Consistent tissue quality output Shared stable folding unit keeps uniform facial tissue quality. Neat folding layers and clean edges, finished goods meet retail market standards for both box and soft‑pack products.
  5. Customizable line configuration You can adjust line layout based on your workshop size and target output. Key components adopt durable structure for long‑hour continuous running, simple daily maintenance.

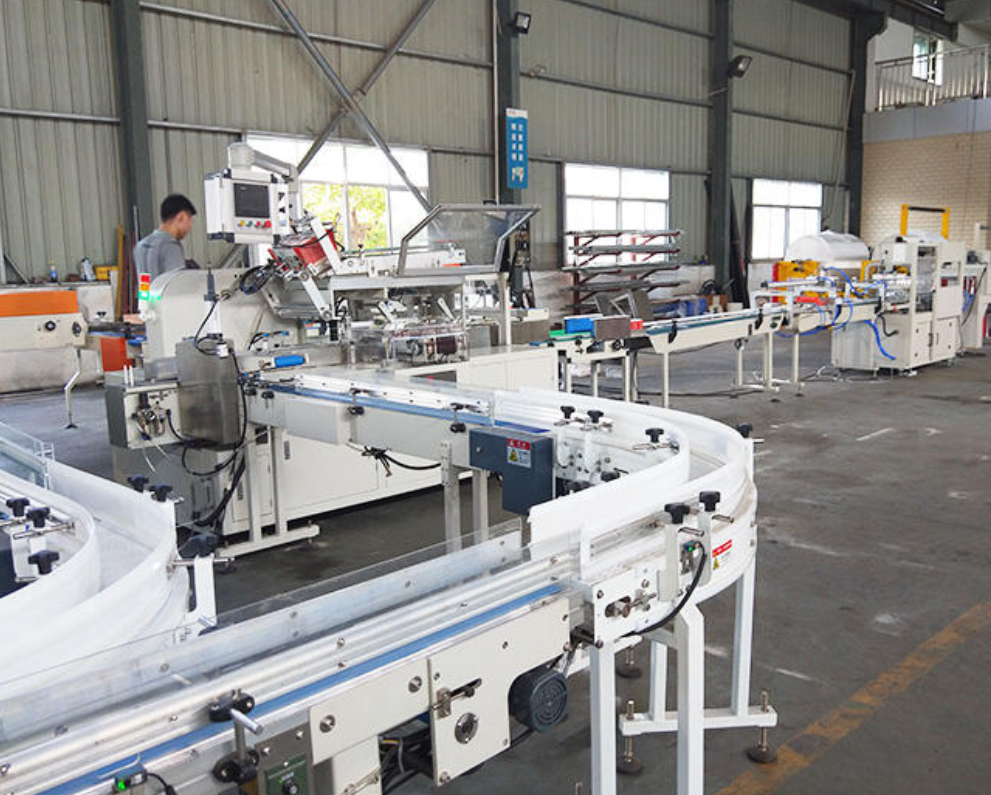

Machine in Action

Watch the real running test and overseas installation demonstration.

15+
Years Experience
50+
Countries Served
500+
Machines Installed
100-200
Factory Staff

Why Choose JORI

We deliver more than machines -- we provide a complete solution for your tissue production business.

High Automation

PLC servo systems for automatic rewinding, cutting, embossing and packaging -- minimize labor costs.

Turnkey Solutions

Factory layout, machine selection, installation, training and lifetime support -- one partner, complete solution.

OEM / ODM

Customized voltage, speed, width and capacity to match your local market and workshop requirements.

Global Track Record

Successful installations in 50+ countries across Americas, Middle East, Africa and Europe.
