Paper Packing Machine

Fully Automatic 1,2, 4, Rolls Packing Machine

Model: Fully Automatic 1‑2‑4 Rolls Toilet Paper Packing Machine, Multi‑Roll Tissue Wrapping Packaging Equipment

Fully Automatic 1 2 4 Rolls Jumbo Roll Paper Packing Machines
Full Automatic 1/2/4 Rolls Toilet Paper Packing Machine
1.The full-automatic roll tissue 1 Roll packing machine is especially designed for the package of roll tissue.
2.It can achieve the process automatically from feeding, packing to side sealing. So that it avoids the second pollution of hand operation in the process of package.

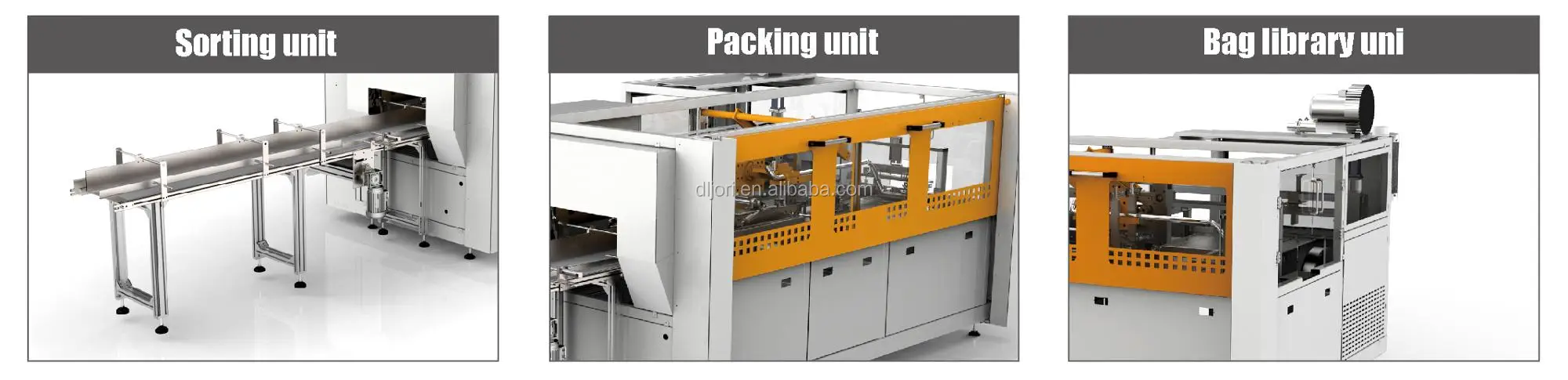

3.The whole line consists of three parts; the material delivery part, roll tissue packing part and side sealing part.
PLC Servo Control Labor Saving OEM / ODM Fast Delivery
Get a Free Quote View Specifications
Factory Direct Global Shipping Lifetime Support

Technical Specifications

Detailed parameters for engineering evaluation and procurement reference.

Parameter Value
Packing size Diameter 90-130 (mm)
Packing size Length 90-220 (mm)
Max film roll diameter F350 mm
Max film width 700mm
Film thickness 0.018mm-0.03mm
Applicable material SPP, KPP. OPP
Packing speed 70-80packs/min
Total power 15.5Kw

* Specifications may vary based on customization requirements. Contact us for tailored solutions.

Product Overview

High Speed Fully Automatic Multi Rolls Packing Machine, 1/2/4 Pcs Tissue Roll Packaging Production Machine

1. The machine can pack single toilet and kitchen towel, doublekitchen towel rolls, double toilet rolls and four toilet rolls.
2. Double lane in-feeder controller by servo motor.
3. No rolls no bag, the film will not move if there is no rolls coming
4. End sealing and film pulling is controlled by servos for fast eact and precise movning.
Fully automatic 1‑2‑4 rolls packing machine is built for tissue factories to pack toilet paper and kitchen towel rolls in groups of 1, 2 or 4 units. It completes roll feeding, film wrapping, sealing and cutting all automatically without much manual work. Operators can easily switch between 1‑roll, 2‑roll and 4‑roll packing modes on the control panel. Suitable for medium and large paper production lines. It delivers stable output and clean packing results, a practical solution to raise your tissue packaging capacity.
Single Bag Packing Machine 1.The host adopts servo and cam control, soft operation, low failure rate, convenient maintenance, stable and reliable. 2.The material is simple and reliable, the specification switching is fast and convenient, and the application range is wide. 3.The negative pressure is given to the bag to give the bag a precise positioning. 4.It adopts vacuum suction molding and constant temperature control sealing method, which has beautiful angle and smooth sealing.

Factory Direct Fully Auto 1,2,4 Rolls Toilet Paper Packing Machine for Tissue Manufacturing Plant

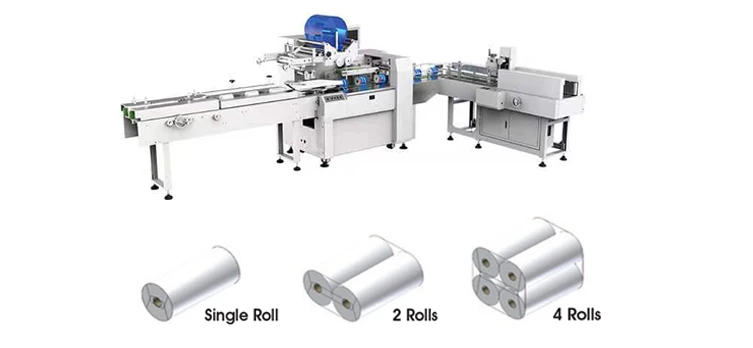

The Single Packing Machine Can pack 5 different types of paper
1. single toilet roll
2. single kitchen towel
3. two rolls toilet paper
4. two rolls kitchen towel
5. four rolls toilet paper

Multi Rolls Packing Machine:

1.The whole machine adopts 5-axis servo control technology, which has fast response and precise movement.
2.The middle seal adopts the instant heating method (patented technology), the temperature control module controls, the middle seal temperature is automatically adjusted according to different packaging speeds, the shutdown start will not burn the packaging film, and the sealing effect is firm and beautiful.
3.The unique film tightening device (patented technology) in the industry makes the packaging film and product fit perfectly, and the overall product guarantees compact and beautiful appearance.
4.The knife seal has an automatic reset function when it encounters a cutting failure.
5.With anti-air bag function (ie no material does not leave the film).
6.Large LCD touch screen display parameter settings, easy to change specifications.

  1. Flexible packing for 1 / 2 / 4 roll combinations Supports 1‑roll, 2‑roll and 4‑roll packing modes for toilet rolls and kitchen towels. Quick mode change to match different market package requirements.
  2. Full‑auto workflow saves labor Whole process from roll feeding to finished packs runs automatically. Less manpower needed compared with semi‑auto machines, helps cut labor cost for mass production.
  3. Simple adjustment & easy operation User‑friendly touch screen control. You can save parameters for different packing formats. Fast size switching reduces production downtime when changing orders.
  4. Consistent packing quality Reliable sealing and cutting system gives neat, firm pack edges. Finished packages look tidy for supermarket and retail sales. Works well with PE and POF shrink films.
  5. Robust structure & low downtime Solid mechanical build for long‑hour continuous running. Low failure rate, spare parts are easy to source. Daily maintenance is straightforward for workshop staff.

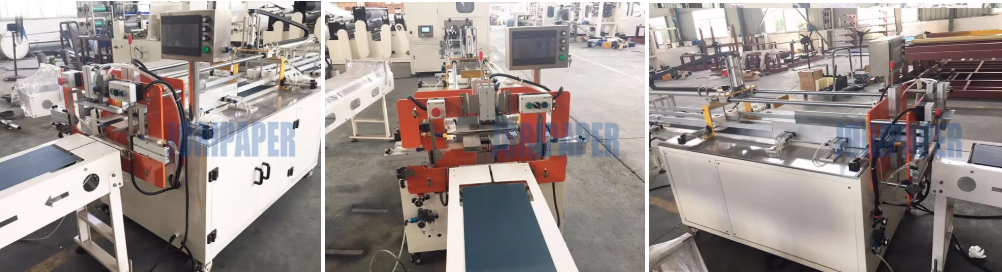

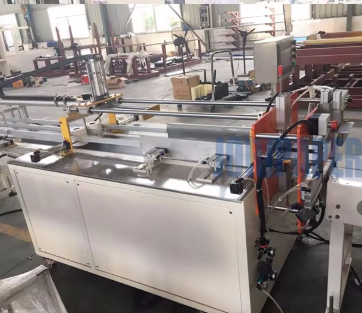

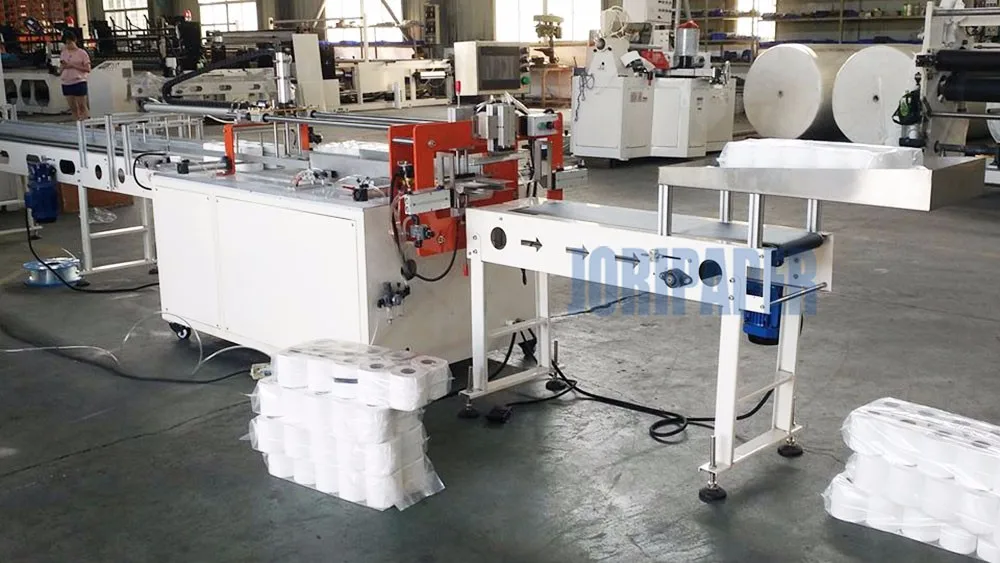

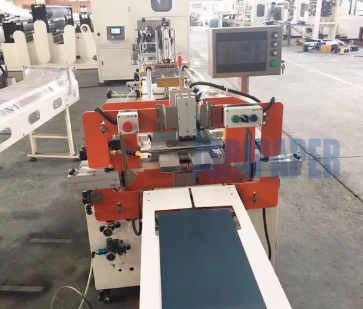

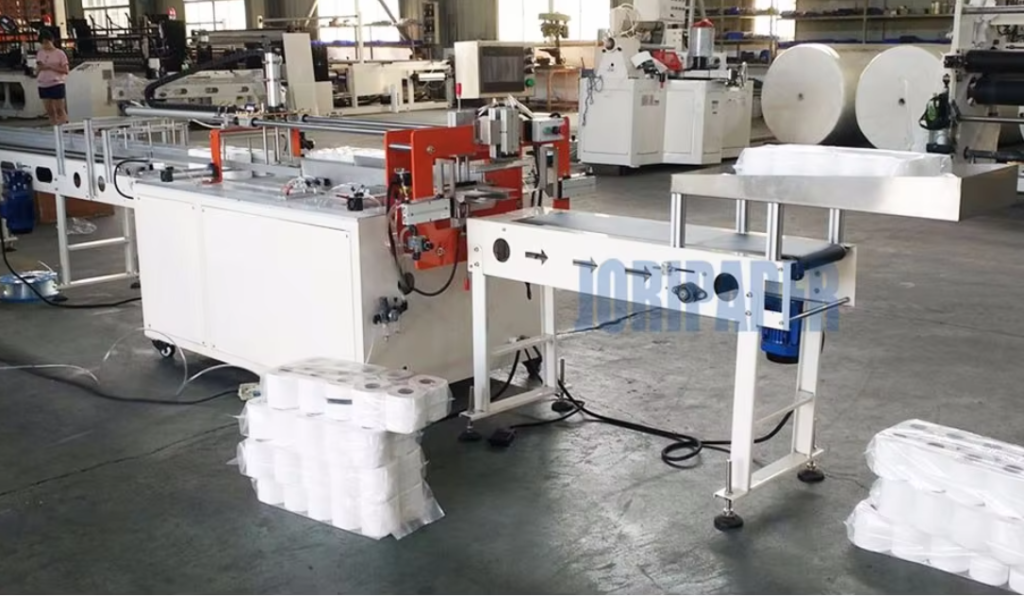

Machine in Action

Watch the real running test and overseas installation demonstration.

15+
Years Experience
50+
Countries Served
500+
Machines Installed
100-200
Factory Staff

Why Choose JORI

We deliver more than machines -- we provide a complete solution for your tissue production business.

High Automation

PLC servo systems for automatic rewinding, cutting, embossing and packaging -- minimize labor costs.

Turnkey Solutions

Factory layout, machine selection, installation, training and lifetime support -- one partner, complete solution.

OEM / ODM

Customized voltage, speed, width and capacity to match your local market and workshop requirements.

Global Track Record

Successful installations in 50+ countries across Americas, Middle East, Africa and Europe.
