Model: Factory Toilet Tissue Paper Machine Line, Embossing Rewinding Cutting Packing, Make 1-24 Rolls Bundles, For Bathroom Toilet Roll
Detailed parameters for engineering evaluation and procurement reference.
| Parameter | Value |
|---|---|

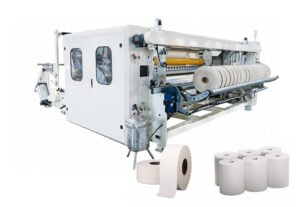

| Jumbo Roll Slitting and Rewinding Machine | Custom Width 1350-3000mm |
| Public Jumbo Roll Tissue Making Line | High Speed 200m/min Maxi Roll Rewinding Machine |
| Jumbo Roll Max. width | 1350mm 1850mm 1880mm 2000mm 2150mm 2400mm 2750mm |
| Programming controller | PLC, touch screen |
* Specifications may vary based on customization requirements. Contact us for tailored solutions.

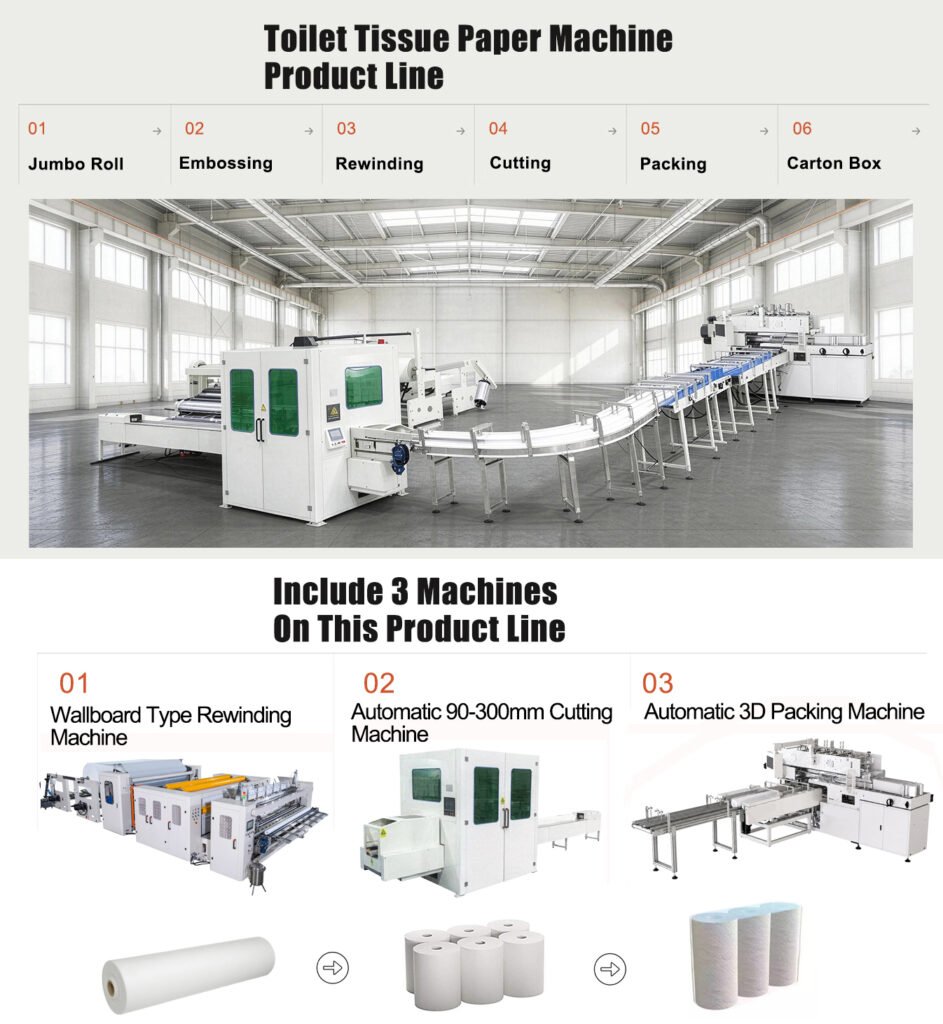

Complete toilet tissue paper production line turns jumbo parent roll into final packed toilet rolls automatically. This set contains 3 core machines: wallboard type rewinder, single channel log saw cutting machine and 3D single bundle packing machine.

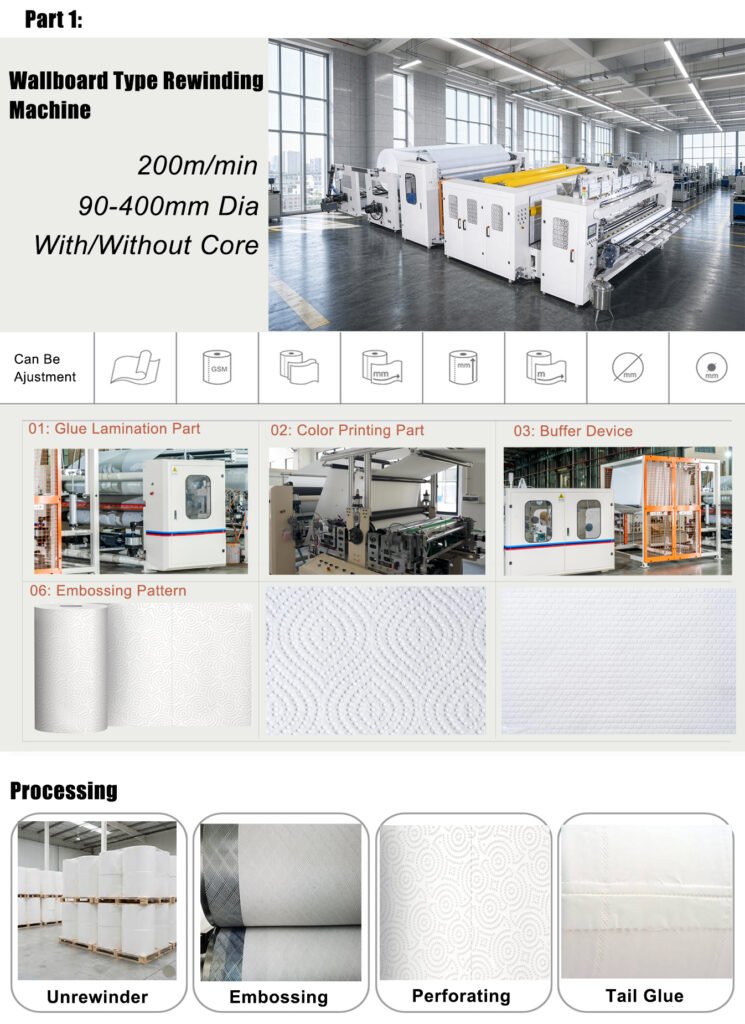

The wallboard rewinding machine runs up to 200m/min. It can make rolls with or without paper core, roll diameter from 90mm to 400mm. It supports glue lamination, color printing and multi-style embossing patterns. Perforation, tail glue sealing can be adjusted easily on touch screen. Wallboard frame keeps the machine stable during long-time continuous operation.

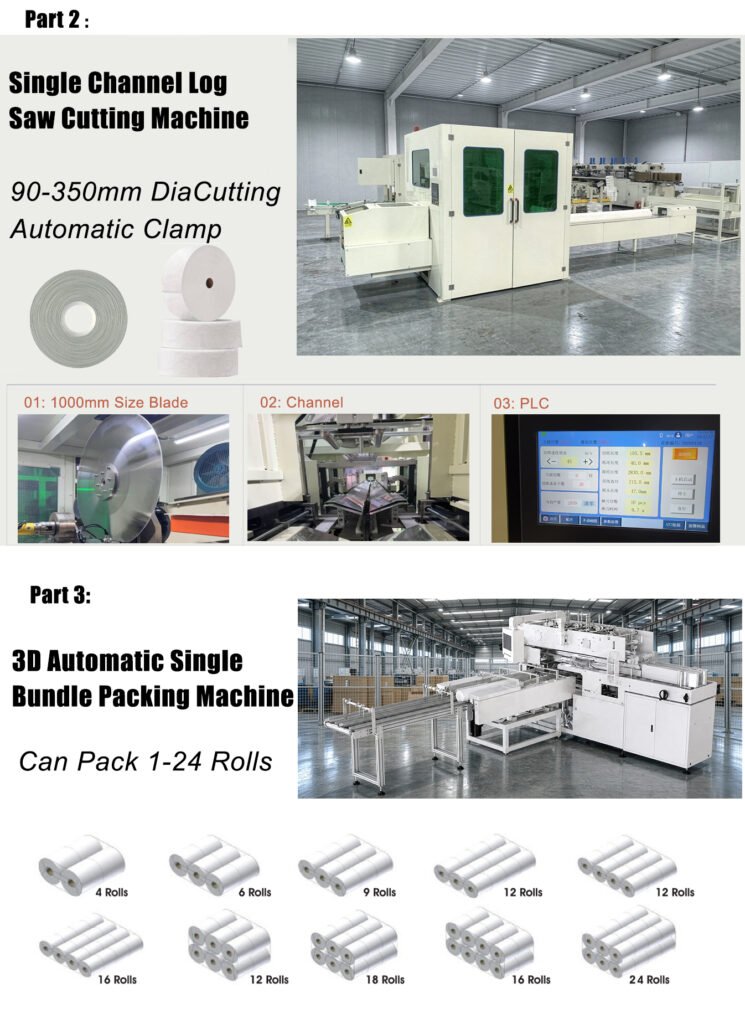

The single channel log cutting machine adopts 1000mm large saw blade, automatic clamping system. Cutting diameter range 90-350mm, clean cut surface without paper burr. Controlled by PLC, easy to set different log length.
The 3D automatic packing machine can pack 1 to 24 rolls in one bundle. Flexible packing combinations for supermarket retail packs. It matches well with the front cutting machine, smooth paper roll transfer and stable packing effect.
Full line only requires few workers. It is suitable for new tissue factory setup or production capacity upgrade. We support custom size & configuration according to your target products. Machine test run before delivery, technical support for installation and after sales service.
Toilet tissue paper machine, toilet roll production line, toilet paper making machine, wallboard rewinding machine, tissue log saw cutting machine, 3D toilet paper packing machine, automatic toilet tissue line, embossing toilet rewinder, bathroom tissue roll machine, tissue paper production equipment
✅ 3-in-1 full line: Rewinding + Cutting + Packing
✅ Max speed 200m/min, wallboard rewinder stable operation
✅ Toilet roll with / without core, diameter adjustable
✅ Optional embossing & color printing for premium tissue
✅ PLC touch screen control, simple operation
✅ Log cutter 90-350mm cutting range, clean cutting
✅ Packing machine: 1~24 rolls per bundle for retail packages
✅ Factory direct, on-site test before shipment
Watch the real running test and overseas installation demonstration.
We deliver more than machines -- we provide a complete solution for your tissue production business.
PLC servo systems for automatic rewinding, cutting, embossing and packaging -- minimize labor costs.
Factory layout, machine selection, installation, training and lifetime support -- one partner, complete solution.
Customized voltage, speed, width and capacity to match your local market and workshop requirements.
Successful installations in 50+ countries across Americas, Middle East, Africa and Europe.
