Maxi Roll/ Public Jumbo Roll Production Line

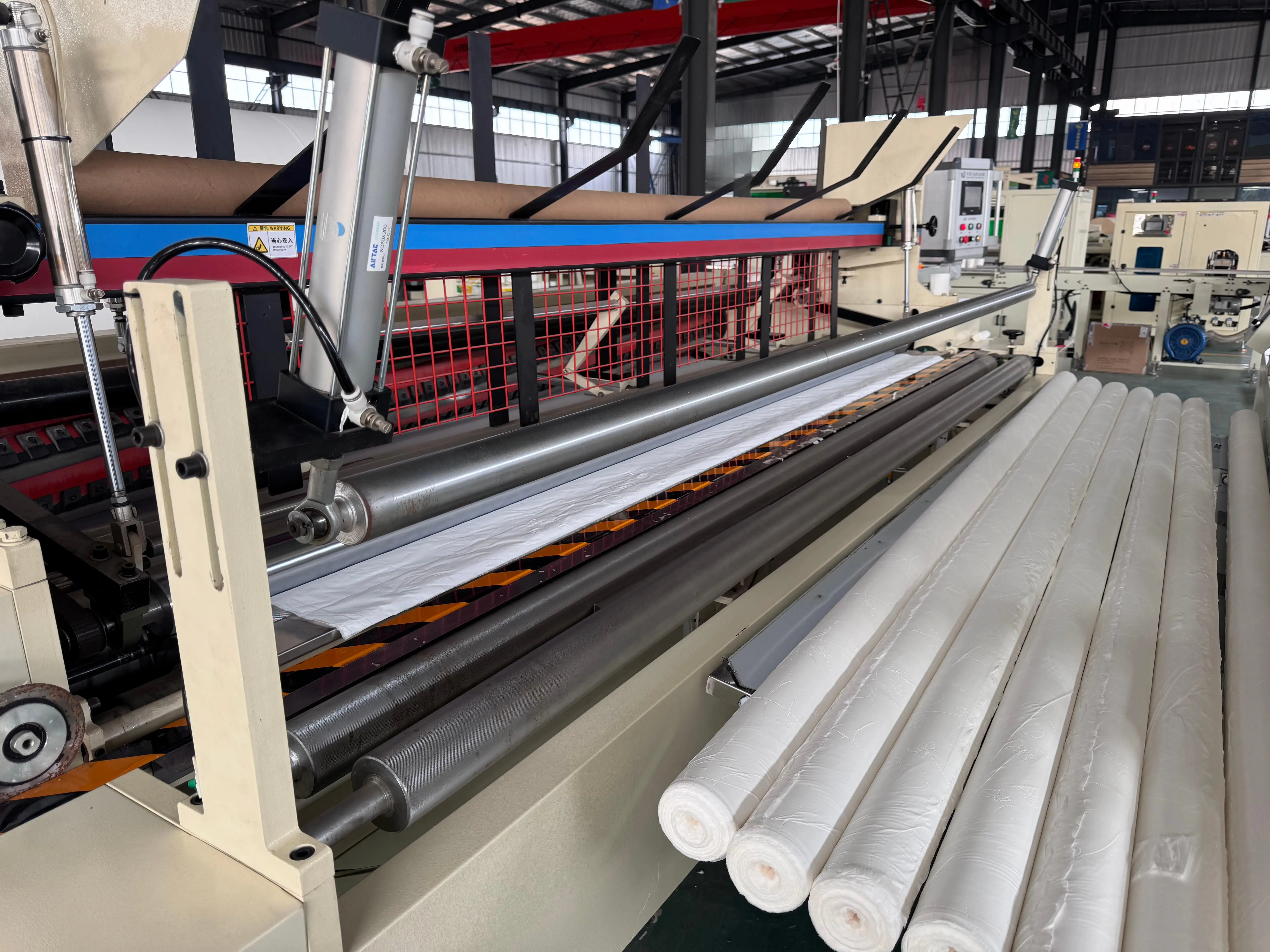

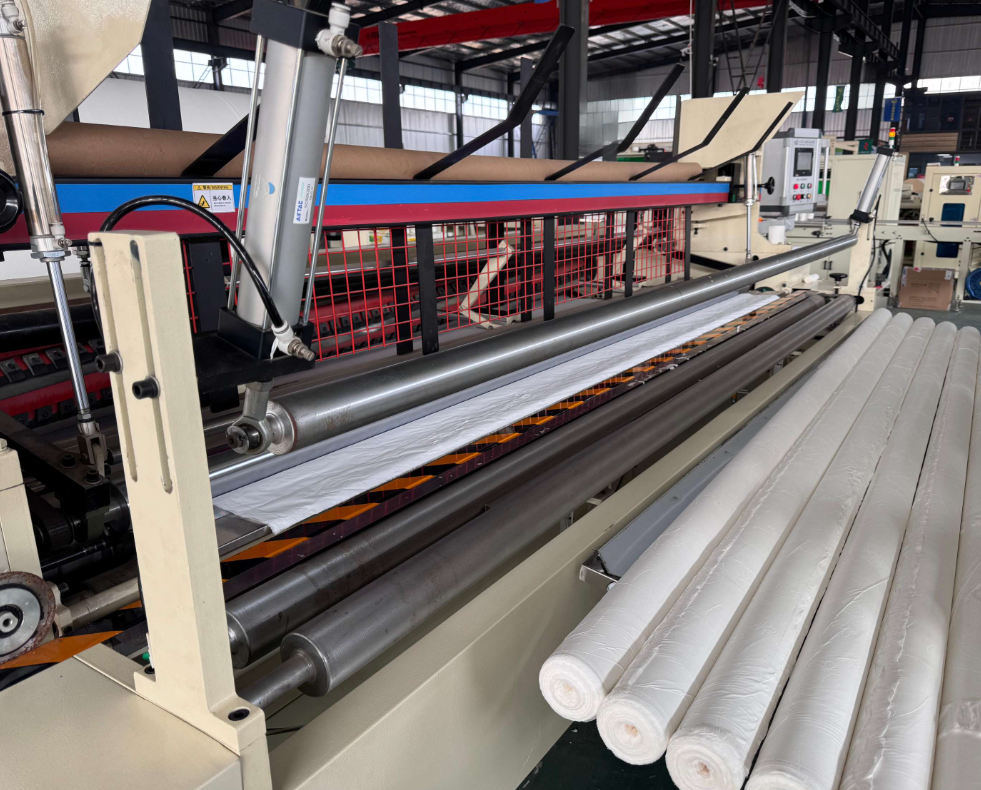

This high‑speed automatic tissue rewinder is built for converting large parent jumbo rolls into toilet rolls, kitchen towels, maxi rolls and public‑use jumbo rolls. Working speed reaches 200m/min with output around 50 rolls per minute. Finished log diameter ranges from 90‑300mm, cutting length up to 1000mm. It features independent motor drive for each section and PLC‑managed tension control. Multi‑language touch screen supports Spanish, Polish and other languages. Machine model can be customized to fit customer’s local jumbo roll width from 1350mm to 3000mm. It can apply paper labels on finished rolls. Well‑suited for medium‑large tissue factories making various commercial and household tissue products.

Fully Auto Jumbo Tissue Rewinder, Independent Motor Control Maxi Public Roll Converting Machine Product Advantages

1. Multi‑product compatible Processes toilet roll, kitchen towel, maxi roll and public jumbo roll. Finished rolls can come with paper labels. Covers log diameter 90‑300mm, cutting length up to 1000mm.
2. High production capacity Running speed up to 200 m/min, output around 50 rolls per minute. Delivers solid throughput for mass‑volume tissue production.
3. Smart PLC tension control Tension of parent jumbo roll is adjusted directly via PLC system. No manual one‑by‑one tuning needed, keeps consistent roll tightness and quality.
4. Independent motor for each unit Every functional part uses separate motor control. More stable running, easier troubleshooting and parameter adjustment for individual sections.
5. Multi‑language & custom‑built option Touch screen supports Spanish, Polish and other languages. Machine width can be customized 1350‑3000 mm according to customers’ original jumbo roll size.
6. User‑friendly for workshop operation Clear touch‑screen operation. Good adaptability for different raw material rolls, reliable continuous performance for tissue converting workshops.
