Kitchen Towel Machine

Automatic Core Tube Paper Making Machine For Toilet Paper/ Kitchen Towel

Model: Small Paper Core Making Machine Automatic Paper Tube Manufacturing Equipment for Tissue Roll Production

Factory Direct Automatic Paper Core Tube Making Machine for Tissue Paper Mill
Automatic High Speed 2 Head Small Size Paper Core Making Machine
Designed for producing paper cores/tubes used in toilet paper, stretch film, fabric rolls, etc.
Supports multiple diameters and thicknesses, customizable as needed
High-speed winding with adjustable length and tightness
Equipped with PLC control system for precise operation and easy adjustment
Servo motor or mechanical drive options available for stable performance
Optional cutting unit, glue system, and automatic unloading
Durable construction for continuous production with low maintenance
PLC Servo Control Labor Saving OEM / ODM Fast Delivery
Get a Free Quote View Specifications
Factory Direct Global Shipping Lifetime Support

Technical Specifications

Detailed parameters for engineering evaluation and procurement reference.

Parameter Value
Design speed 20m/min
Steady speed 15~ 18 m/minutes
Kraft paper width 50~70mm
Paper tube diameter 25mm ~ 100mm (Can be customized)
Paper tube layers 2 ~5 layers (Can be customized)
The shortest winding length 750mm
Paper grams amount 200-400g/m
Overall dimension Host: 2950x1700x1800mm (L x W x H) Jerry device:1250x850x1200mm (L x W x H)
Weight 1500KGS

* Specifications may vary based on customization requirements. Contact us for tailored solutions.

Product Overview

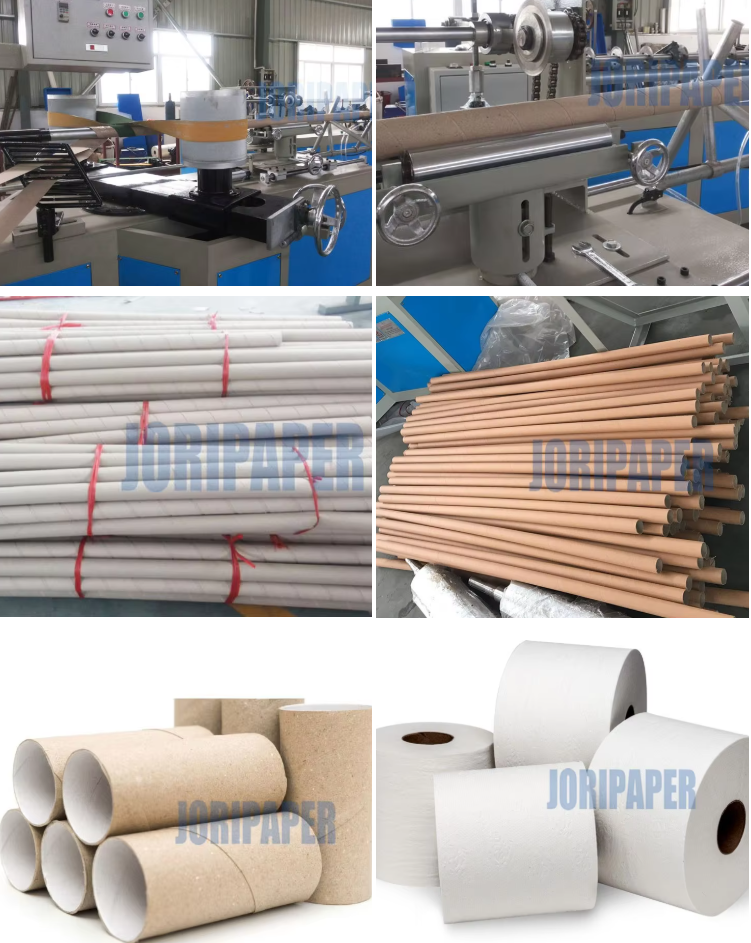

Automatic core tube paper making machine is used to produce inner paper cores for toilet paper rolls and kitchen towel rolls. It finishes paper feeding, glue applying, multi‑layer winding, tube cutting and finished tube output automatically. It can produce paper cores in different inner diameters and lengths to match various tissue roll sizes. Simple to operate and adjust, this machine is ideal for tissue factories that want to make their own paper cores on‑site instead of buying from outside suppliers.

Small automatic paper core making machine for manufacturing paper tubes used in toilet paper, kitchen towel and tissue rolls.Compact, high efficiency equipment for paper converting factories

Kraft Cardboard Corrugated Laminated Paper Core Can Tube Making Machine

Automatic Core Tube Paper Making Machine, Paper Core Winding Machine for Toilet Paper & Kitchen Towel Main Features:

1. Inverter control to ensure the accuracy of the length of paper tube.
2. Automated online on plastic, paper tube and cut off.
3. Product diameter and length can be customized according to customer needs.
4. Products are widely used in toilet paper.
5. Plastic film and textile industry. The machine has reasonable design. Easy Operation and convenient maintenance.

Product Advantages

  1. Fits tissue core production perfectly Specially built for making inner paper tubes for toilet rolls and kitchen towels. Adjustable tube diameter and length to meet different production requirements.
  2. Full automatic workflow saves cost Automatic gluing, winding and cutting. Less manual work required. Producing cores in‑house helps cut purchasing cost of external paper cores.
  3. Stable tube quality Even glue coating and tight multi‑layer winding. Finished paper cores are round, firm and not easy to deform, good for subsequent tissue rewinding process.
  4. Quick size adjustment Change tube specifications through simple settings. Fast switch between different core sizes, less downtime for order change. Ordinary workers can operate it after short training.
  5. Solid build for continuous work Robust machine frame for long‑time running. Low failure rate. Daily maintenance is straightforward, spare parts are easy to get.

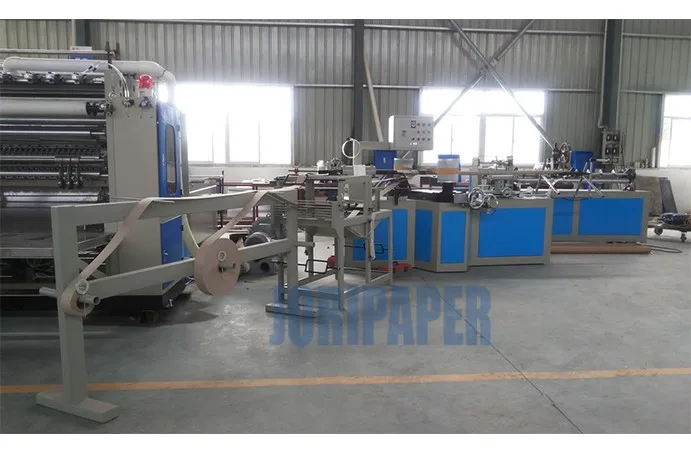

Machine in Action

Watch the real running test and overseas installation demonstration.

15+
Years Experience
50+
Countries Served
500+
Machines Installed
100-200
Factory Staff

Why Choose JORI

We deliver more than machines -- we provide a complete solution for your tissue production business.

High Automation

PLC servo systems for automatic rewinding, cutting, embossing and packaging -- minimize labor costs.

Turnkey Solutions

Factory layout, machine selection, installation, training and lifetime support -- one partner, complete solution.

OEM / ODM

Customized voltage, speed, width and capacity to match your local market and workshop requirements.

Global Track Record

Successful installations in 50+ countries across Americas, Middle East, Africa and Europe.
