Kitchen Towel Machine

kitchen Towel Machine

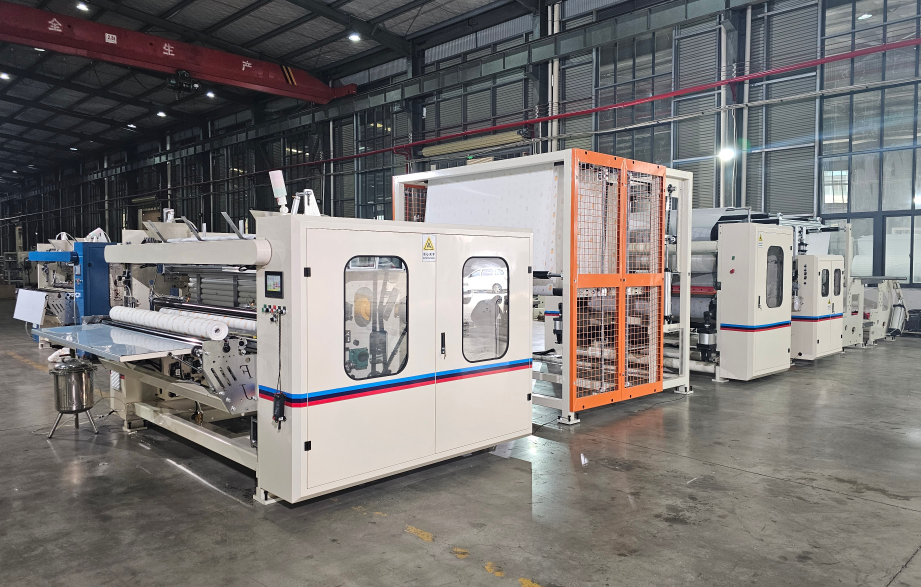

Model: Economic Automatic Toilet Tissue/Kitchen Towel Machine Line

Wallboard rack frame toilet tissue paper and kitchen towel Making machine

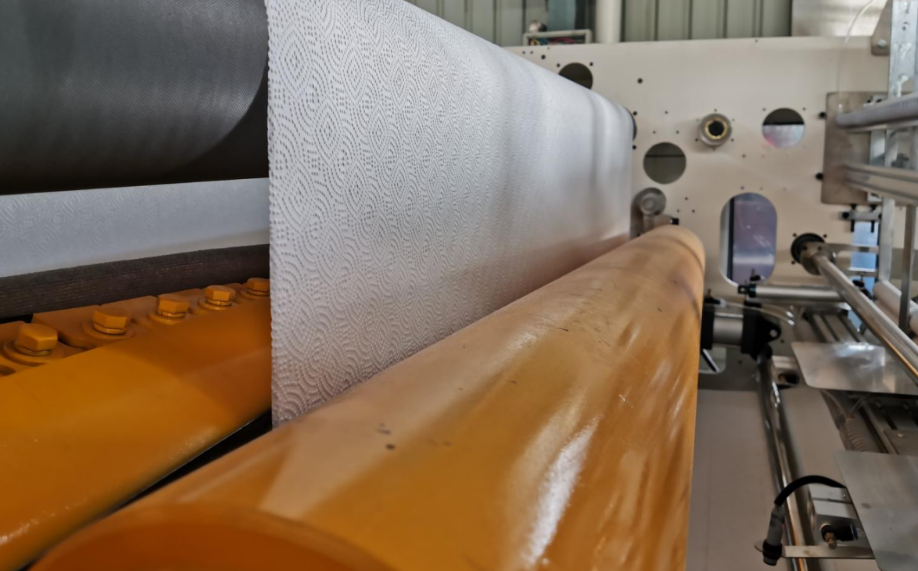

The gluing composite embossing roller adopts heat sleeve technology. The outer pipe is made of a special alloy steel pipe with a rough wall thickness of 50 mm. The inner hole of the entire pipe is first finely turned and bored to one size. The inner pipe is made of a 45-gauge carbon steel seamless steel pipe with a wall thickness of 30 mm. The outer ring of the inner pipe is made of a 20-mm thick spiral steel plate. shape welded together, heat shrink sleeved into the shaft head, and then the inner tube is machine-processed to an outer diameter that matches the inner diameter of the outer tube. The outer tube is placed on the workbench of the tower type heat jacket furnace, and the entire outer tube is heated to the expansion coefficient. Specify the size, then lift the inner tube up and slowly compress it into the inner hole of the outer tube. The two are integrated into one. After cooling, a high-strength embossed roller blank is formed, which is then rough-machined by a lathe. The tile medium frequency heat treatment furnace uses heat treatment and cooling technology to make the surface of the roller blank reach a hardness of 55 to 58. Then it goes to the lathe for the third time for finishing and a dynamic balance test is performed. After reaching a balance accuracy of plus or minus 5 grams, it is finely ground on a cylindrical grinder. After processing to the size required by the drawing, the roller body is processed, and then enters the next laser etching process to laser engrave the customer-customized pattern on the surface of the roller body. After the engraving is completed, shot blasting and sandblasting are performed to remove burrs on the surface. The entire process After smoothing, it enters the electroplating process. A layer of high-hardness chromium with a thickness of 0.03 mm is plated on the pattern surface.The whole plate is bright and smooth. At this point, the pattern roller completes all processes and is installed on the machine
PLC Servo Control Labor Saving OEM / ODM Fast Delivery
Get a Free Quote View Specifications
Factory Direct Global Shipping Lifetime Support

Technical Specifications

Detailed parameters for engineering evaluation and procurement reference.

Parameter Value
Jumbo roll width 1850mm
Jumbo roll diameter 1200mm
Jumbo roll inner diameter 76.2mm
Speed Max 230m/min

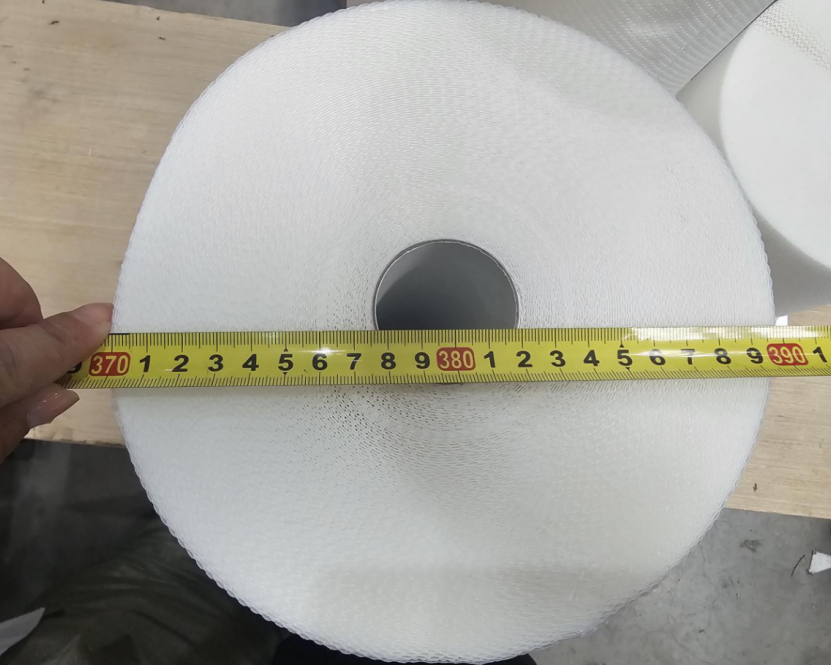

Diameter of finished paper 90-300mm
With two jumbo roll stands with core accumulator
Toilet tissue paper and kitchen towel Making machine with perforating device,4anvil blades can adjustment (115mm-280mm)

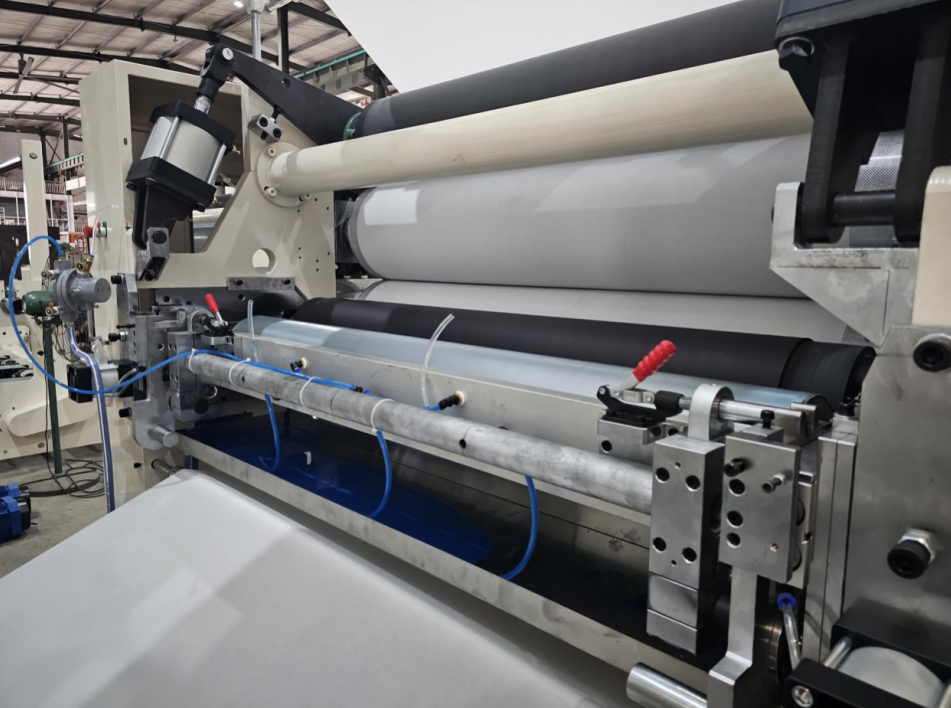

Toilet tissue paper machine with glue lamination part,this type is enclosed, can glue evenly and save the glue, the finished products is dots to dots
Diameter of finished paper inner core (38-76mm) 20mm thickness of wallboard of machine

* Specifications may vary based on customization requirements. Contact us for tailored solutions.

Product Overview

High‑Durability Toilet Tissue Kitchen Towel Making Machine, Precision Custom Pattern Embossing Roller With Heat‑Sleeve Process

Factory Direct Wallboard Rack Frame Tissue Rewinding Machine, Hard‑Chrome Plated Embossing Roller for Tissue Manufacturing

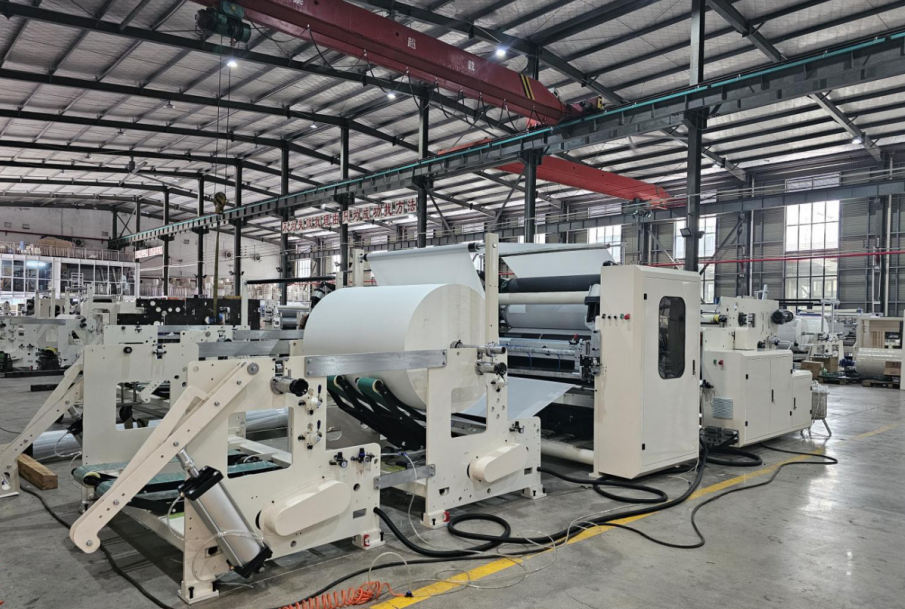

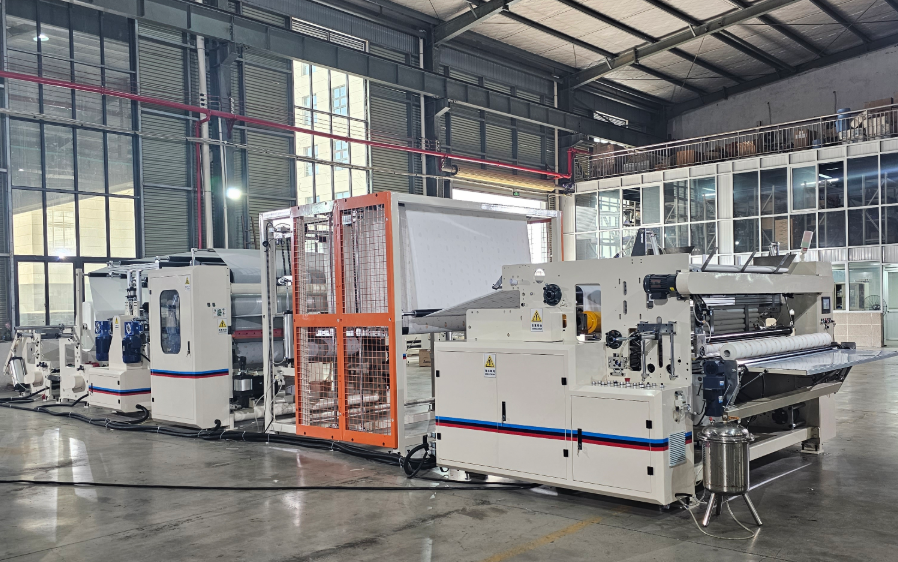

Wallboard rack frame tissue making machine is designed to produce toilet tissue rolls and kitchen towels. Its core highlight lies in the gluing composite embossing roller built with advanced heat‑sleeve technology. The roller is assembled from special alloy steel outer tube and 45‑gauge carbon steel inner tube through thermal shrink fitting, followed by heat treatment, multiple‑step machining, dynamic balance testing, laser pattern engraving, shot blasting and 0.03 mm hard‑chrome electroplating. The finished embossing roller delivers high hardness, good strength and custom‑engraved patterns. Supported by solid wallboard rack frame, the machine runs steadily for long‑time mass production of household and commercial tissue products.

  1. Premium embossing roller with heat‑sleeve integrated structure Adopts thermal shrink sleeve assembly for inner and outer roller tubes. Forms a high‑strength integrated blank, avoids loosening or separation between layers even under continuous high‑speed operation.
  2. Strict multi‑step manufacturing & heat treatment Medium‑frequency heat treatment brings surface hardness 55‑58 HRC. Combined with repeated turning, finishing and dynamic balance test within ±5 g tolerance. Effectively reduces vibration during working.
  3. Custom laser‑engraved patterns and hard‑chrome plating Supports customer‑specific laser etched patterns. After shot‑blasting deburring, 0.03 mm high‑hardness chrome plating is applied. The roller surface stays smooth, wear‑resistant and long service life.

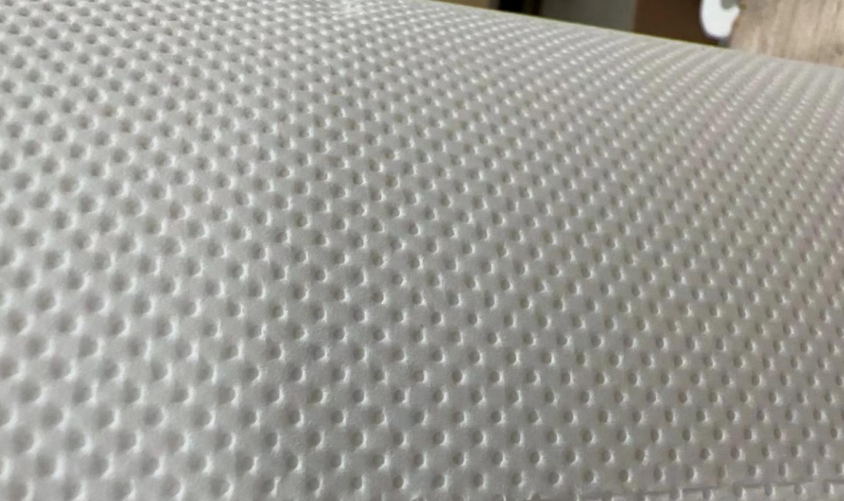

  4. Rigid wallboard rack frame for stable performance Heavy‑duty wallboard rack structure minimizes machine shake. Helps achieve clear, uniform embossing effect on toilet tissue and kitchen towel finished rolls.
  5. Durable core component lowers running cost High‑strength and wear‑proof embossing roller reduces frequent replacement. Suitable for long‑hour continuous workshop production, good return for tissue factories making toilet rolls and kitchen towels.
