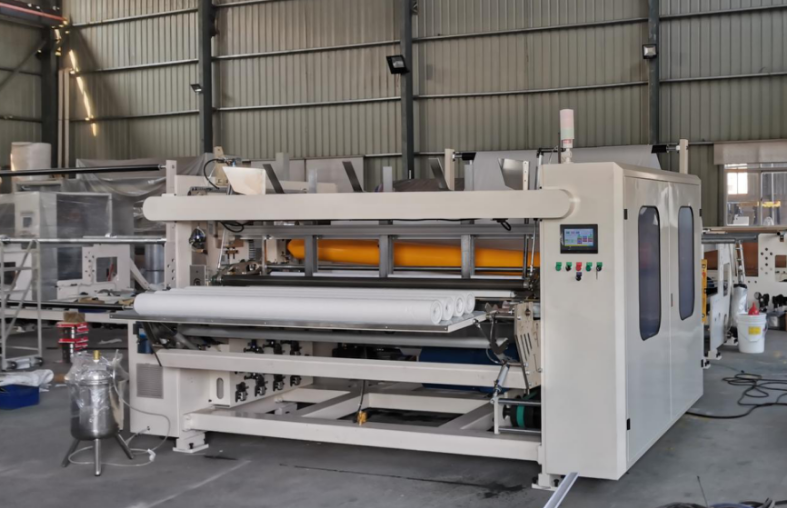

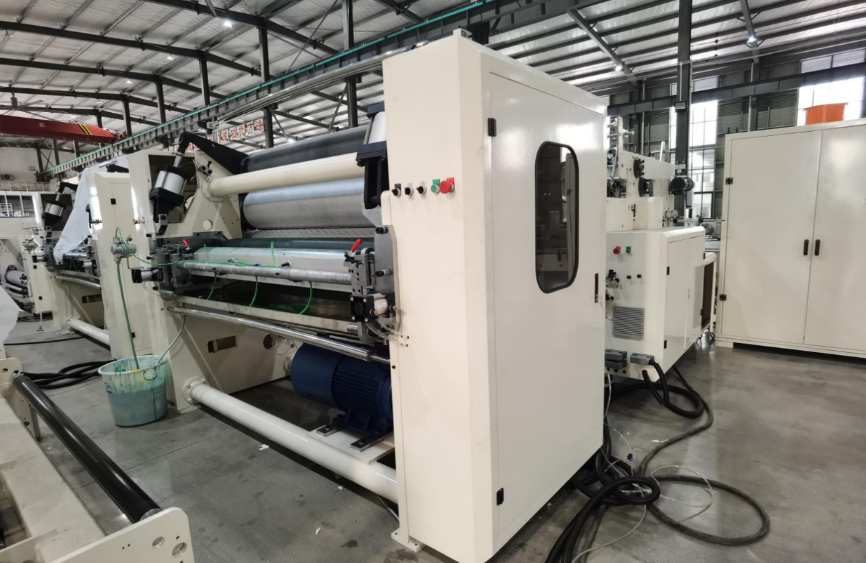

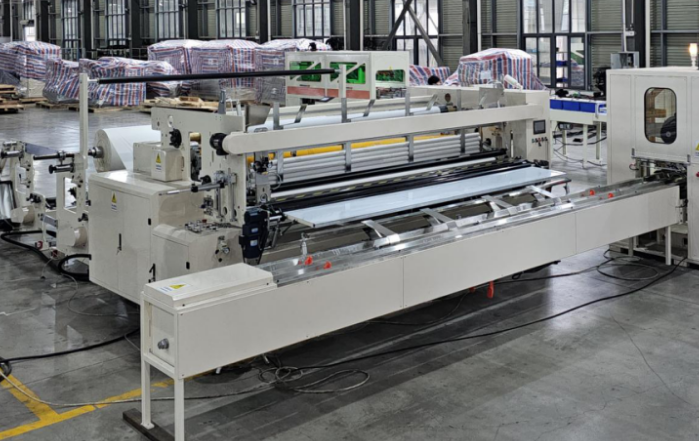

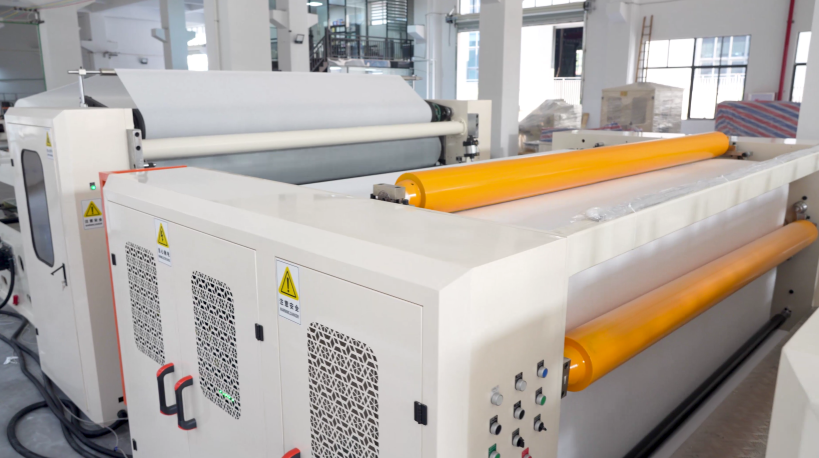

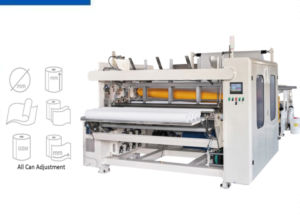

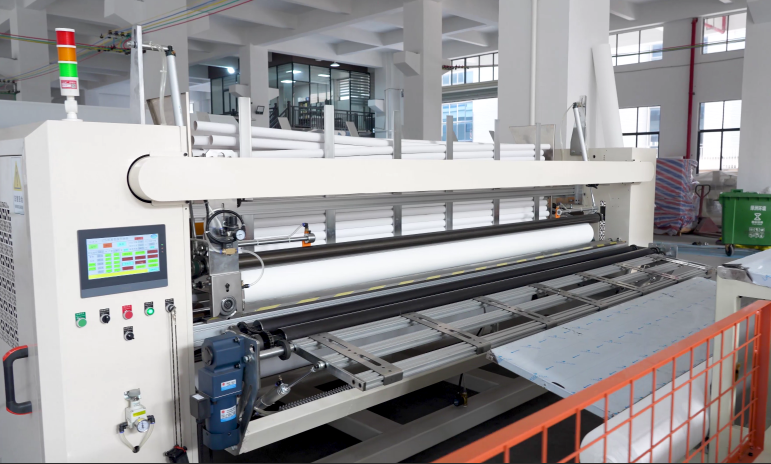

Toilet Paper Rewinding Machine

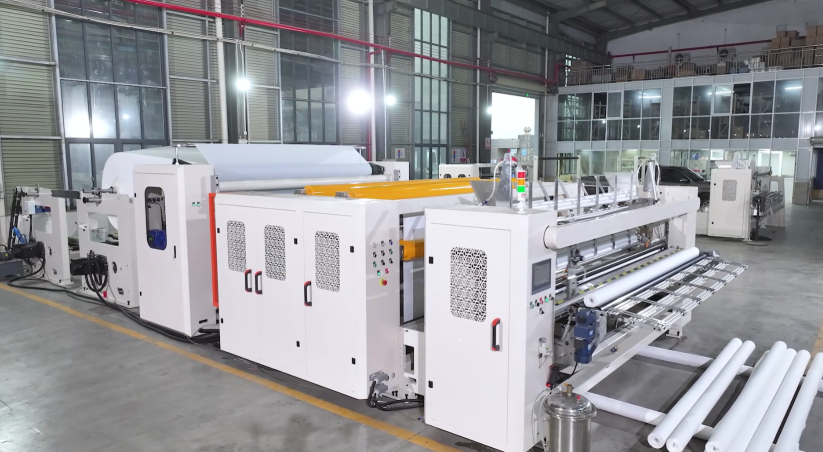

Tissue Paper Rewinding Machine

Model: Economic Automatic Toilet Tissue/Kitchen Towel Machine Line

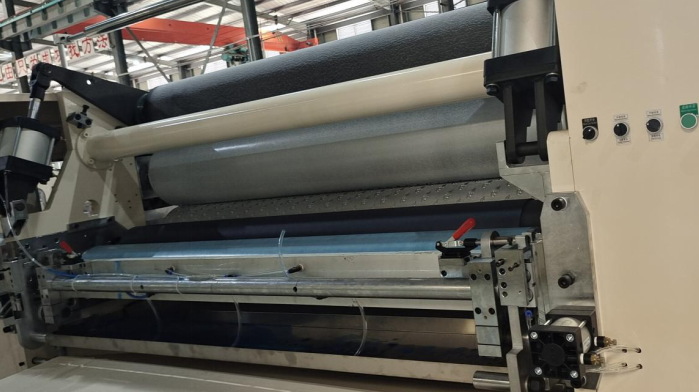

The gluing composite embossing roller adopts heat sleeve technology. The outer pipe is made of a special alloy steel pipe with a rough wall thickness of 50 mm. The inner hole of the entire pipe is first finely turned and bored to one size. The inner pipe is made of a 45-gauge carbon steel seamless steel pipe with a wall thickness of 30 mm. The outer ring of the inner pipe is made of a 20-mm thick spiral steel plate. shape welded together, heat shrink sleeved into the shaft head, and then the inner tube is machine-processed to an outer diameter that matches the inner diameter of the outer tube. The outer tube is placed on the workbench of the tower type heat jacket furnace, and the entire outer tube is heated to the expansion coefficient. Specify the size, then lift the inner tube up and slowly compress it into the inner hole of the outer tube. The two are integrated into one. After cooling, a high-strength embossed roller blank is formed, which is then rough-machined by a lathe. The tile medium frequency heat treatment furnace uses heat treatment and cooling technology to make the surface of the roller blank reach a hardness of 55 to 58. Then it goes to the lathe for the third time for finishing and a dynamic balance test is performed. After reaching a balance accuracy of plus or minus 5 grams, it is finely ground on a cylindrical grinder. After processing to the size required by the drawing, the roller body is processed, and then enters the next laser etching process to laser engrave the customer-customized pattern on the surface of the roller body. After the engraving is completed, shot blasting and sandblasting are performed to remove burrs on the surface. The entire process After smoothing, it enters the electroplating process. A layer of high-hardness chromium with a thickness of 0.03 mm is plated on the pattern surface.The whole plate is bright and smooth. At this point, the pattern roller completes all processes and is installed on the machine
PLC Servo Control Labor Saving OEM / ODM Fast Delivery
Get a Free Quote View Specifications
Factory Direct Global Shipping Lifetime Support

Technical Specifications

Detailed parameters for engineering evaluation and procurement reference.

Parameter Value
Wallboard Toilet Paper Machine jumbo roll width:1850mm
Kitchen Towel Making Machine jumbo roll diameter:1200mm
Toilet Paper Rewinding Machine jumbo roll inner diameter:76.2mm
Toilet Tissue and Kitchen Towel Machine speed: Max 230m/min
Wallboard Frame Tissue Machine 20mm thickness of wallboard of machine

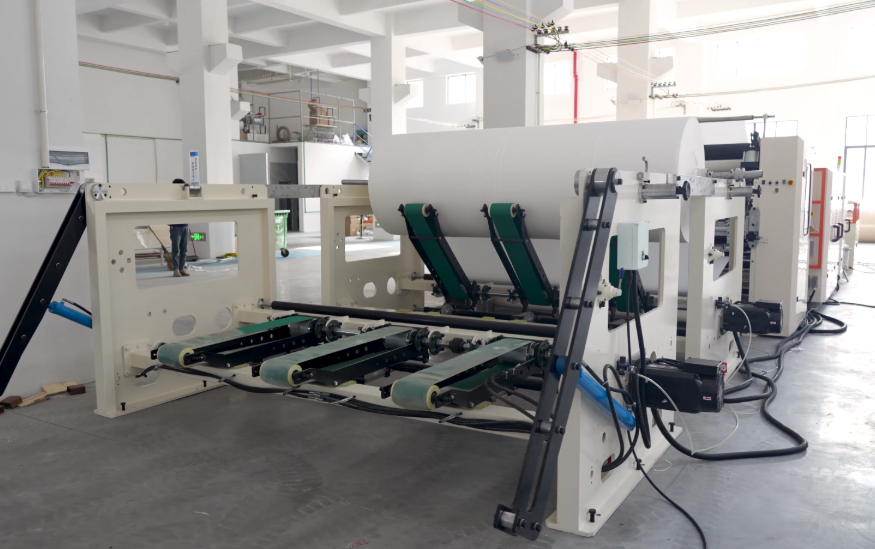

Automatic Toilet Paper and Kitchen Towel Rewinder with core accumulator & two jumbo roll stands
Toilet Paper Making Machine with perforating device,4anvil blades can adjustment (115mm-280mm)
Toilet Tissue Kitchen Towel Machine with Embossing with plc touch screen invt(brand)
Automatic Toilet Roll Rewinding and Perforating Machine diameter of finished paper:(90-280mm)

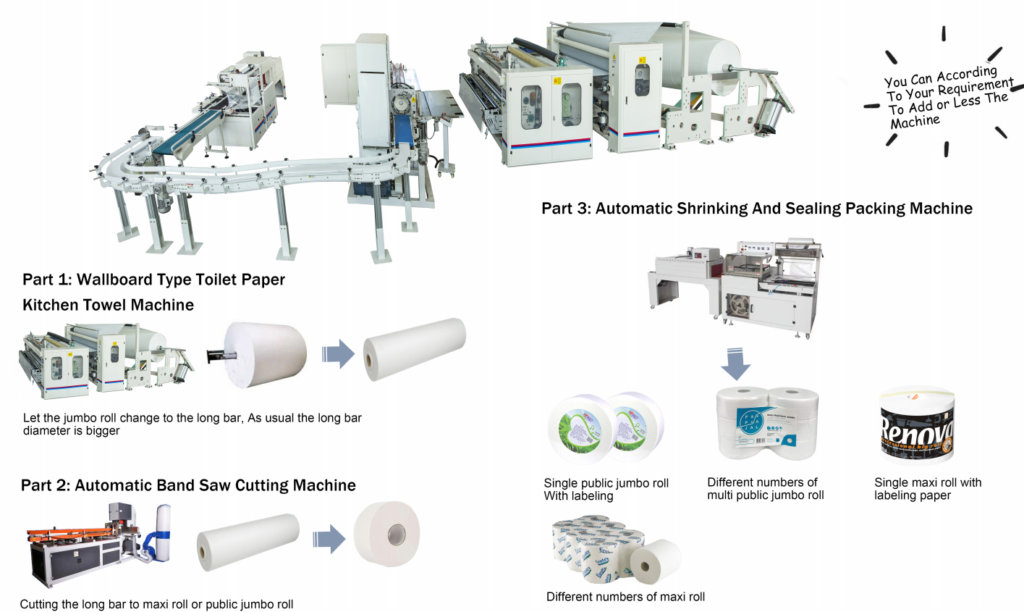

Full Automatic Toilet Roll Production Line diameter of finished paper inner core (38-76mm)

* Specifications may vary based on customization requirements. Contact us for tailored solutions.

Product Overview

Tissue Paper Rewinding Machine, Heat‑Sleeve Technology Gluing Composite Embossing Roller for Tissue Converting

Tissue paper rewinding machine is built for tissue roll conversion, with its core highlight being the gluing composite embossing roller manufactured by mature heat‑sleeve technology. The roller combines special alloy steel outer tube and 45‑gauge carbon steel inner tube through thermal shrink fitting. It goes through rough and fine turning, medium‑frequency heat treatment, dynamic balance test within ±5 g, cylindrical grinding, custom laser pattern etching, shot‑blasting deburring and 0.03 mm hard‑chrome electroplating. The finished embossing roller features high surface hardness, good mechanical strength and wear‑resistant custom patterns. Paired with reliable machine body, this rewinder delivers stable embossing effect and consistent finished‑roll quality for tissue factories.

  1. Heat‑sleeve integrated embossing roller structure Outer alloy steel tube and inner carbon steel tube are thermally shrunk into one solid piece. Avoids layer separation or loosening even under continuous high‑speed operation, improves overall roller stability.
  2. Strict multi‑step machining & heat treatment Medium‑frequency heat treatment achieves surface hardness 55‑58 HRC. Multiple turning processes plus dynamic balance test at ±5 g accuracy greatly reduce vibration during running.
  3. Support custom laser‑etched patterns Customer‑specific patterns can be laser engraved on roller surface. Shot‑blasting removes burrs, followed by 0.03 mm high‑hardness chrome plating for smooth, bright and wear‑resistant surface.
  4. Long service life for heavy‑duty production High‑strength and anti‑wear embossing roller cuts replacement frequency. Well‑suited for long‑hour continuous production, lowers spare‑part cost for tissue plants.
  5. Consistent premium embossing performance Precision‑made roller produces clear, uniform patterns on tissue rolls. Helps finished tissue products gain better market competitiveness for retail and wholesale orders.
