Paper Packing Machine

Automatic Single Toilet Paper Kitchen Towel Packing Machine

Model: Automatic Single Roll Toilet Paper Kitchen Towel Packing Machine, High Speed Fully Automatic Packaging Equipment

Electric Automatic Single Roll Napkin Wrapping and Sealing Machine Easy to Operate for Food and Textiles
Protecting the environment is becoming more and more important now, so we have developed this paper packaging machine. The raw material of this machine is paper, which replaces traditional plastic packaging. More and morecountries are choosing this packaging method.
PLC Servo Control Labor Saving OEM / ODM Fast Delivery
Get a Free Quote View Specifications
Factory Direct Global Shipping Lifetime Support

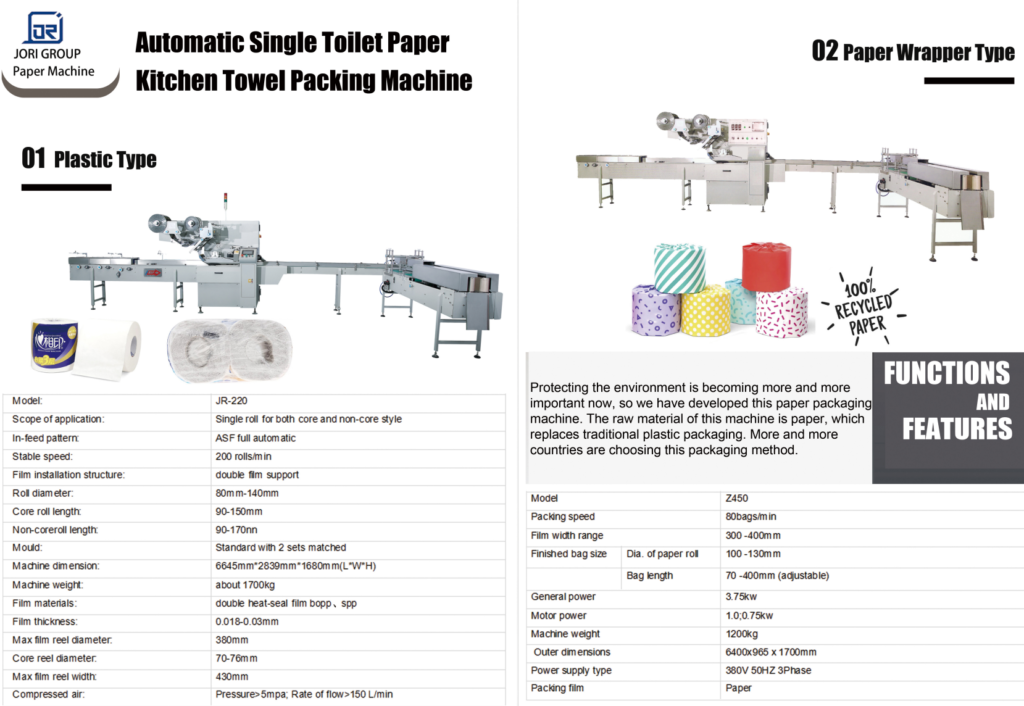

Technical Specifications

Detailed parameters for engineering evaluation and procurement reference.

Parameter Value
Scope of application: Single roll for both core and non-core style
In-feed pattern: ASF full automatic
Stable speed: 200 rolls/min

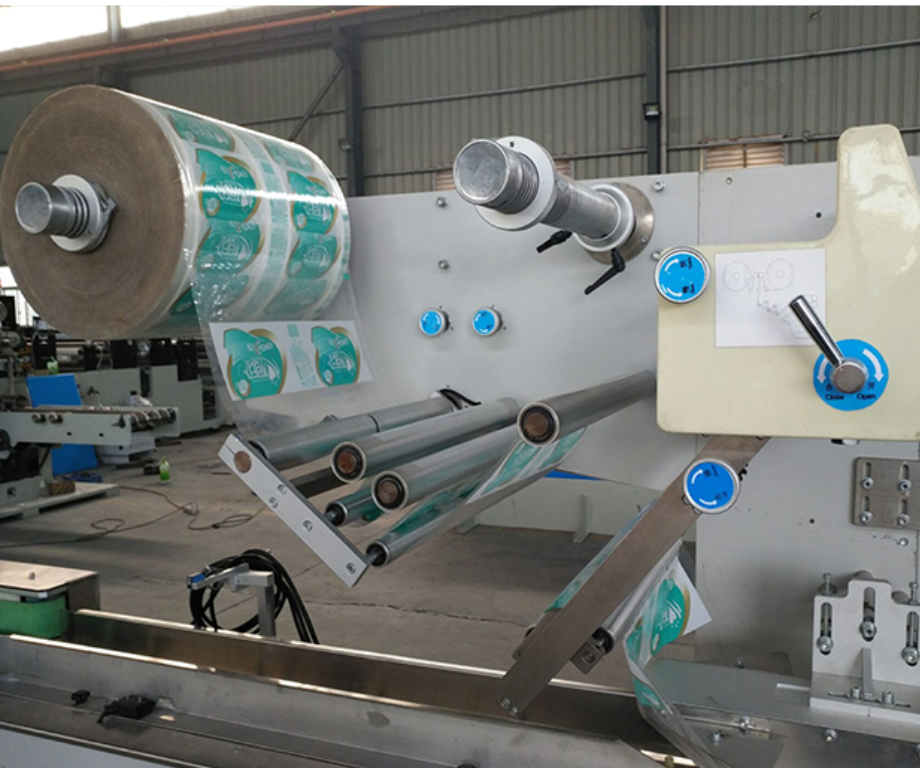

Film installation structure: double film support
Roll diameter: 80m m-140mm
Core roll length: 90-150mm
Mould: Standard with 2 sets matched
Machine dimension: 6645mm*2839mm*1680mm(L*W*H)
Film materials: double heat-seal film bopp, spp
Film thickness: 0.018-0.03mm
Compressed air: Pressure>5mpa; Rate of flow>150 L/min
Max film reel width: 430mm

* Specifications may vary based on customization requirements. Contact us for tailored solutions.

Product Overview

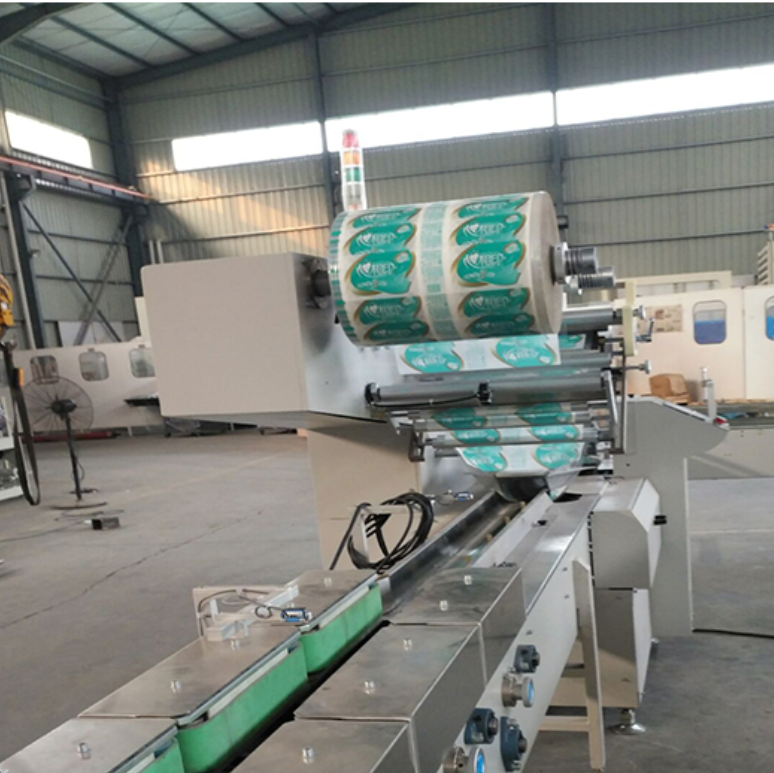

Full Servo Automatic Single Toilet Paper Kitchen Towel Packing Machine | Stable Running, Low Noise & Energy Saving
Automatic Single Toilet Paper & Kitchen Towel Packing Machine is a professional intelligent packaging equipment independently developed for single roll tissue packaging demands. It is universally applicable to fully automatic packaging of core and coreless toilet paper rolls, kitchen paper towels and similar roll-shaped tissue products. Adopting advanced PLC intelligent control system and multi-axis servo drive technology, the machine realizes full-process automatic operation including automatic paper feeding, film feeding, positioning, sealing, cutting and finished product output. Equipped with high-precision photoelectric tracking system, it effectively corrects packaging film deviation to ensure neat and consistent packaging effect. With humanized touch screen operation panel, the machine supports one-key parameter setting and data memory, enabling quick switching of different product specifications. Featuring compact structure, stable mechanical operation and low failure rate, it is widely suitable for small, medium and large tissue processing factories, realizing efficient and standardized single roll packaging production and greatly improving product packaging grade and production efficiency.
1. Fully Automatic & High Efficiency, Great Labor Savings This machine supports full automatic packaging from material feeding to finished product output with little manual operation. It greatly cuts labor costs and avoids uneven packaging quality caused by manual work. It can quickly switch between different product sizes with saved parameter settings, effectively boosting production efficiency.
2. Wide Compatibility & Flexible Customization It fits most roll tissue products, including cored / coreless toilet rolls and various sizes of kitchen towels. The machine works well with common packaging films like PE and POF shrink film. Packaging size, speed and sealing methods can be adjusted according to actual production needs, suitable for diverse product lines.
3. Precise Packaging & Nice Finished Look Equipped with photoelectric tracking and constant temperature sealing system, it ensures accurate film positioning and clean cutting. The independent upper and lower temperature control makes sealing edges flat, tight and wrinkle-free. Packaged products are tidy, uniform and high-grade, improving shelf display performance.
4. Stable Running & Low Operating Cost Adopted servo motor and frequency speed control, the machine runs steadily with low noise and low failure rate. The energy-saving design reduces power consumption. Modular structure makes daily maintenance and part replacement easier, lowering long-term running and maintenance costs.
5. User-Friendly Operation & High Safety Comes with a simple touch screen for real-time data checking and easy parameter adjustment. Built-in overload protection and emergency stop functions ensure safe operation. The reasonable structural layout simplifies daily cleaning and maintenance, friendly for ordinary workers.

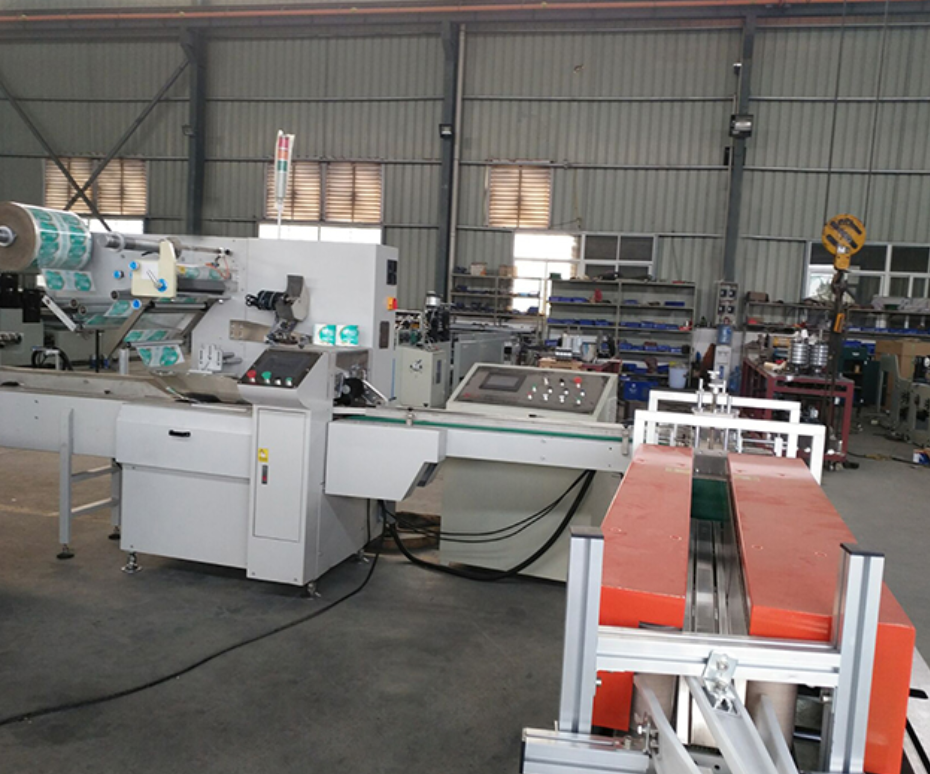

Machine in Action

Watch the real running test and overseas installation demonstration.

15+
Years Experience
50+
Countries Served
500+
Machines Installed
100-200
Factory Staff

Why Choose JORI

We deliver more than machines -- we provide a complete solution for your tissue production business.

High Automation

PLC servo systems for automatic rewinding, cutting, embossing and packaging -- minimize labor costs.

Turnkey Solutions

Factory layout, machine selection, installation, training and lifetime support -- one partner, complete solution.

OEM / ODM

Customized voltage, speed, width and capacity to match your local market and workshop requirements.

Global Track Record

Successful installations in 50+ countries across Americas, Middle East, Africa and Europe.
